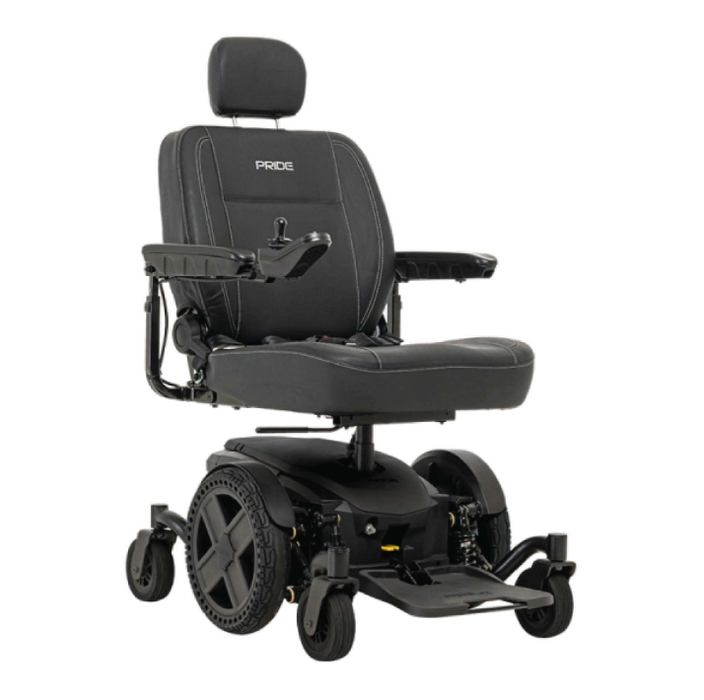

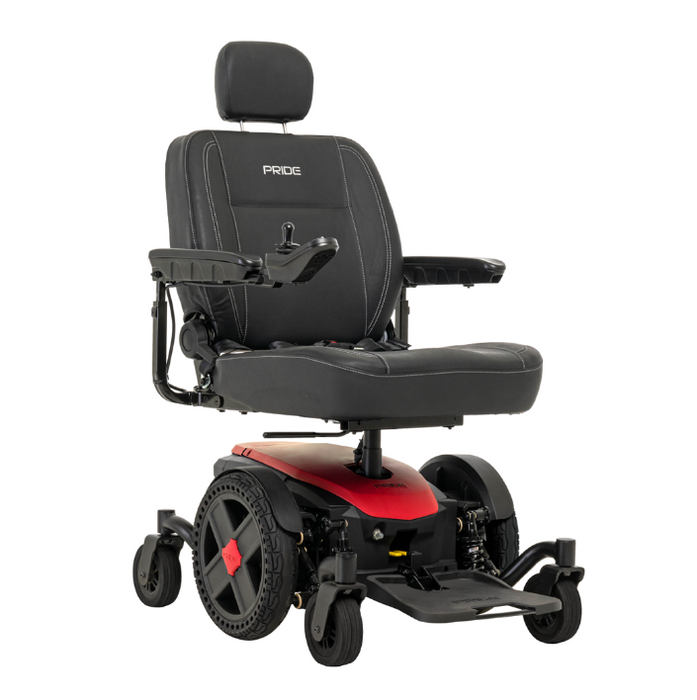

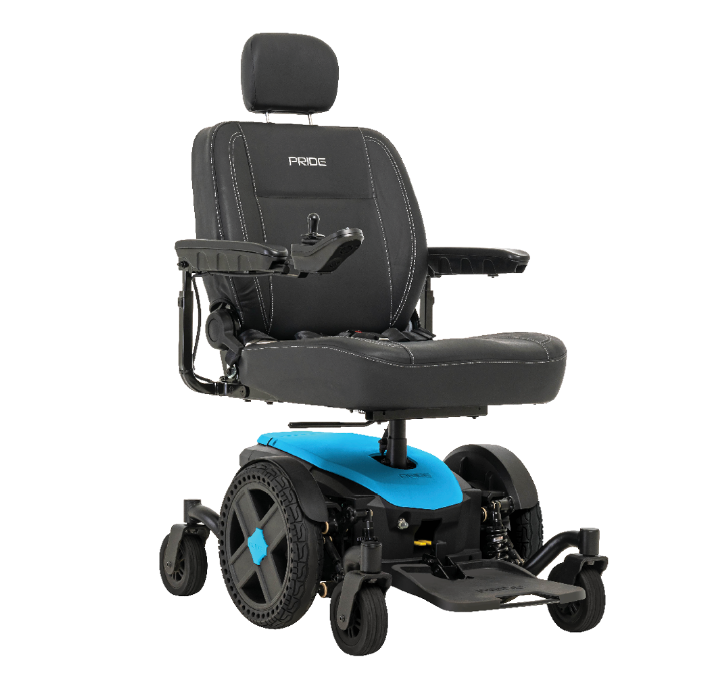

Pride Mobility Jazzy Evo 614 HD Powerchair
The Jazzy® EVO 614HD is designed to offer an unparalleled level of freedom and versatility, empowering users to effortlessly navigate through indoor spaces while also conquering uneven terrains. The Jazzy® EVO 614HD empowers you to get up and go. Built to push the boundaries of everyday life, this heavy-duty power wheelchair boasts a 204 kg weight capacity, delivering strength, stability, and confidence.
Click here to download a pdf on the Jazzy® EVO 614HD.
Specifications
| Overall Length | 101.6 cm |
| Overall Width | 64.5.6 cm |
| Ground Clearance | 7.6 cm at mid-frame |
| Turning Radius | 55.9 cm |
| Drive Wheels | 13.75” solid |
| Front Wheels | 6” solid castors |
| Rear Wheels | 6” solid castors |
| Suspension | Active-Trac (ATX) |
| Drivetrain | Two-motor, in-line HD, mid-wheel drive |
| Braking System | Regenerative & electro-mechanical |
| Standard Electronics | 60 amp, Dynamic Linx |
| Battery Charger | Off-board, 5A |
| Pre-charge Range* | Up to 21 km |
| Battery Requirements | Two 12 V, deep cycle |
| Battery Weight | 16.8 kg each |
| Base Weight | 44 kg |
| Standard Seat Weight | 23.5 kg (high-back) |
| High Back Seat to Floor Range | 55.8 cm - 60.9 cm |
| Maximum Speed* | Up to 7.8 km/h |
| Maximum User Weight | 204 kg |
| Colour | Black, Cardinal Red, Robins Egg Blue |
* Depends on user weight, terrain, battery conditions and tyre conditions.
Features
- Two-motor, front-wheel drive.
- 14" knobbly tires and optimun weight distribution provide superior traction.
- NF-22 batteries for maximum range.
- 5 amp off board charger.
Please note: not all colour options may be available to view in store. Selected colours may be on display, with the full colour range subject to availability. Please contact us to confirm colour availability.
We highly recommend that you come instore to trial this powerchair to ensure it best suits your needs. Alternatively home trials are available within the greater Auckland area. Please click here to arrange.
